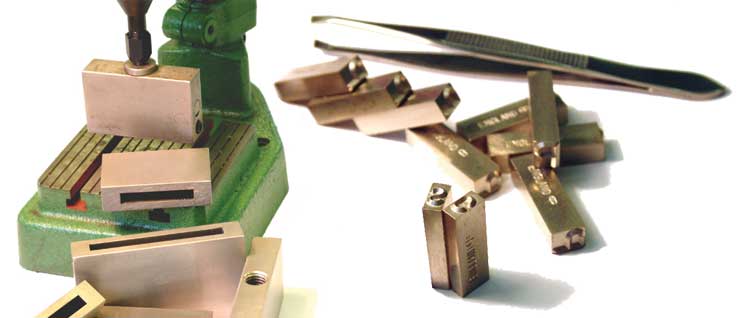

Machine Type Holder Specifications
Safety Note: We recommend the use of appropriate safety protection. Safety glasses and gloves should be used at all times.
Machine Type Holder Bodies for use with 07 series Sharp Faced Imperial Type
Part
Number |
Slot Size
(mm)
A B |
Maximum Quantity of Type Pieces That Will Fit In Holder |
Type
Height
.040 |
Type
Height
1/16" |
Type
Height
5/64" |
Type
Height
3/32" |
Type
Height
1/8" |
Type
Height
5/32" |
Type
Height
3/16" |
| PH6.35-29 |
6.35 29 |
18 |
18 |
15 |
12 |
9 |
7 |
6 |
| PH6.35-39 |
6.35 39 |
24 |
24 |
19 |
15 |
12 |
9 |
8 |
| PH6.35-60 |
6.35 60 |
37 |
37 |
30 |
25 |
18 |
15 |
12 |
| PH6.35-70 |
6.35 70 |
42 |
43 |
35 |
28 |
21 |
17 |
14 |
| Double Line Holder |
| PH12.8-39 |
12.8 39 |
24* |
24* |
19* |
15* |
12* |
9* |
8* |
|
Type Holder Slot Dimensions
Single Line Holder
Double Line Holder
See Shank Selection at Bottom
|
*2 rows of the number of characters listed can be held in this holder.
Machine Type Holders for use with 02 series Sharp Faced Pryor Type
Part
Number |
Slot Size
(mm)
A B |
Maximum Quantity of Type Pieces That Will Fit In Holder |
Type
Height
.040 |
Type
Height
1/16" |
Type
Height
5/64" |
Type
Height
3/32" |
Type
Height
1/8" |
Type
Height
5/32" |
Type
Height
3/16" |
| PH3.2-40 |
3.2 40 |
24 |
24 |
|
|
|
|
|
| PH6.35-29 |
6.35 29 |
182 |
182 |
14 |
12 |
9 |
|
|
| PH6.35-39 |
6.35 39 |
242 |
242 |
19 |
16 |
12 |
|
|
| PH6.35-40 |
6.35 40 |
252 |
252 |
20 |
16 |
12 |
|
|
| PH6.35-60 |
6.35 60 |
37 |
37 |
30 |
25 |
18 |
|
|
| PH6.35-70 |
6.35 70 |
432 |
432 |
35 |
28 |
21 |
|
|
| PH8.0-40 |
8.0 40 |
|
|
|
|
|
10 |
8 |
| PH8.0-50 |
8.0 50 |
|
|
|
|
|
12 |
10 |
| Quad/Double Line Holder (see type size notations 1 & 2) |
| PH12.8-39 |
12.8 39 |
241 |
241 |
192 |
152 |
122 |
|
|
|
Type Holder Slot Dimensions
Single Line Holder
Double Line Holder
See Shank Selection at Bottom
|
1 4 rows of the number of characters listed can be held in this holder.
2 2 rows of the number of characters listed can be held in this holder.
Machine Type Holders for use with 07 series Imperial Lowstress Faced Type
Part
Number |
Slot Size
(mm)
A B |
Maximum Quantity of Type Pieces That Will Fit In Holder |
Type
Height
1/8" (3mm) |
Type
Height
3/16" (5mm) |
| PH6.35-29 |
6.35 29 |
6 |
call |
| PH6.35-39 |
6.35 39 |
8 |
call |
| PH6.35-60 |
6.35 60 |
12 |
call |
| PH6.35-70 |
6.35 70 |
14 |
call |
| Double Line Holder |
| PH12.8-39 |
12.8 39 |
8* |
call |
|
Type Holder Slot Dimensions
Single Line Holder
|
*2 rows of the number of characters listed can be held in this holder.
Machine Type Holders for use with 56 series Euro Type
Part
Number |
Slot Size
(mm)
A B |
Maximum Quantity of Type Pieces That Will Fit In Holder |
Type
Height
1.0mm |
Type
Height
1.5mm |
Type
Height
2.0mm |
Type
Height
2.5mm |
Type
Height
3.0mm |
Type
Height
4.0mm |
Type
Height
5.0mm |
| PH4.0-29 |
4.0 29 |
19 |
19 |
14 |
|
|
|
|
| PH6.0-39 |
6.35 39 |
|
|
|
15 |
13 |
|
|
| PH8.0-40 |
8.0 40 |
26* |
26* |
20* |
|
|
10 |
8 |
| PH8.0-50 |
8.0 50 |
33* |
33* |
25* |
|
|
12 |
10 |
|
Type Holder Slot Dimensions
Single Line Holder
Double Line Holder
See Shank Selection at Bottom
|
*2 rows of the number of characters listed can be held in this holder.
Shanks for Machine Type Holders
Part
Number |
Diameter |
Length* |
Application or Pryor Press Model Noted Below |
| HDSK090 |
20mm |
25/32" |
88mm |
3.46" |
For Manual Use By Hand & Hammer |
| HMS060 |
6mm |
1/4" |
30mm |
1.18" |
114M, 2M800 |
| HMS080 |
8mm |
5/16" |
35mm |
1.38" |
114PB, 114PF, 114PCR |
| HMS100 |
10mm |
3/8" |
40mm |
1.57" |
115M, 115PB, 115PF, 115PCR 2M3500 |
| HMS160 |
16mm |
5/8" |
50mm |
1.97" |
116M, 116PB, 116PF, 116PCR |
| HMS2025 |
20mm |
25/32" |
25mm |
0.98" |
2M4000 |
| HMS2040 |
20mm |
25/32" |
40mm |
1.57" |
|
| HMS2540 |
25.4mm |
1" |
38mm |
1.49" |
|
|
Shanks are fitted with M12 thread to match with Pryor holder bodies and numbering heads.
|
*Not including the threaded end.
Safety Note - Shank should be fitted to bodies using a thread locking adhesive (such as Loctite® red #271).
