LOW STRESS Type Specifications

Safety Note: We recommend the use of appropriate safety protection. Safety glasses and gloves should be used at all times.

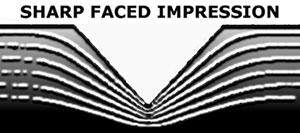

Sharp faced type leaves a crisp indent in the component being marked.

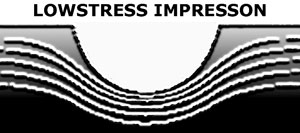

Low Stress type creates less stress in the component since the bottom of the mark is rounded effectively reducing extreme stress at the bottom of the mark.

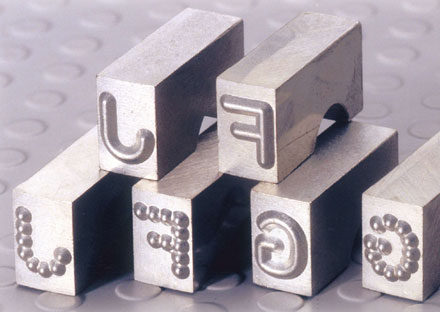

Pryor MiniStressTM Stamps have special rounded, continious line characters to facilitate low stress marking.

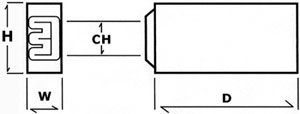

Character Height (CH)
InchesMetric
Blank Size
HxWxD
Set with Holder
Part Number
Set without Holder
Part Number
Individual Characters
1/8"3mm1/4"3/16"7/8"TMSFH030TMSF030TMS030-(*)
3/16"5mm3/8"1/4"3/4"TMSFH050TMSF050TMS050-(*)
Pryor DotstressTM Stamps have even greater reduced stress levels and are the professional engineers choice for minimum stress imparted on the material being marked.

Character Height (CH)
InchesMetric
Blank Size
HxWxD
Set with Holder
Part Number
Set without Holder
Part Number
Individual Characters
1/8"3mm1/4"3/16"7/8"TDSFH030TDSF030TDS030-(*)
3/16"5mm3/8"1/4"3/4"TDSFH050TDSF050TDS050-(*)

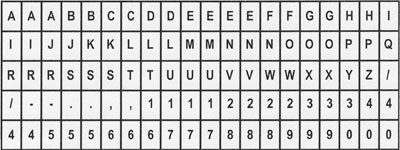

Type Sets contain 100 characters plus spacers, tweezers, hexagon key and hand holder (optional). The illustration to the left shows the specific characters contained in these sets. Single pieces of type are also available. These sets are supplied in a durable polymer case with a divider grid to assure components are kept in order.



Accessories & Related Products

PRYOR Hand Held Type Holders (to be used with a hammer)

Machined specifically for use with Pryor Interchangeable Steel Type.
  • Provides a safe and convenient way to use Interchangeable Steel Type by hand and hammer.
  • Hardened for years of service.
  • Type holders are nickle plated to resist corrosion.
  • Several standard models available for use with the specific Pryor type you have.

PRYOR Machine Type Holders (to be used in a press)

Machined specifically for use with Pryor Interchangeable Steel Type.
  • Designed for use with Pryor type in Pryor Percussion Presses plus can be adapted to a wide range of other brand marking presses.
  • Knurled shank available allowing for use by hand and hammer.
  • Type holders are nickle plated to resist corrosion.
  • Several standard models available for use with the specific Pryor type you have.
